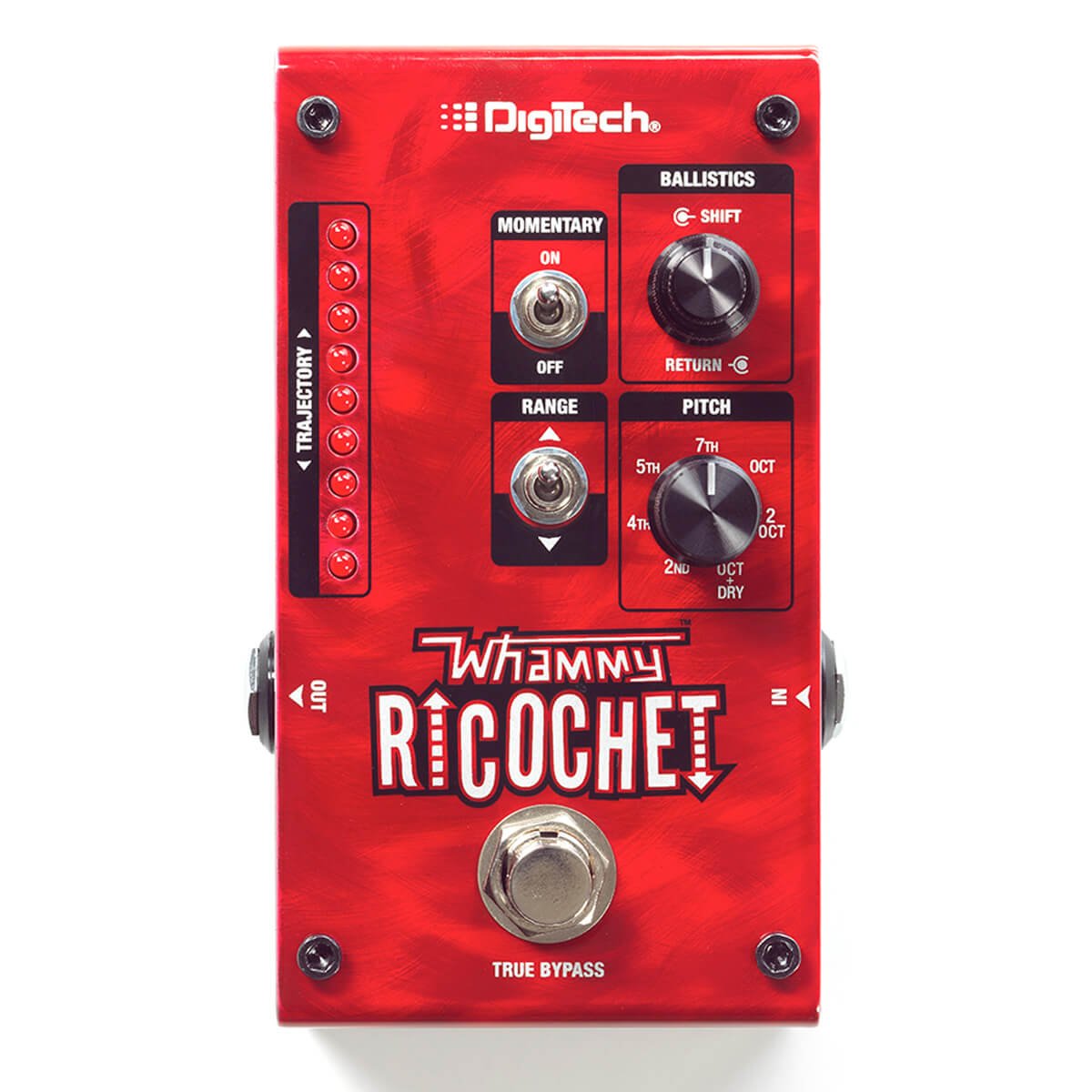

Whammy Ricochet Small Pedal
Low in-store inventory, may be subject to change.
| Conditional | |
| Quantity: | |
|
|
|
Add to Cart | |
;){kind=link}
SPECIFICATIONS
| General Specifications | Â |
|---|---|
|
CONTROLS |
Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off |
|
SAMPLE RATE |
44.1 kHz in classic mode, 22 kHz in chords mode |
|
FREQUENCY RESPONSE |
20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode) |
|
SIGNAL TO NOISE RATIO |
> -106dB (A weighted); ref = max level, 22 kHz bandwidth |
|
A/D/A CONVERTER |
24-bit |
|
THD |
0.004% @ 1 kHz; ref = 1 dBu w/ unity gain |
|
POWER CONSUMPTION |
2.1 Watts (235 mA typical @ 9 VDC) |
|
POWER REQUIREMENTS |
9V DC External Adapter (sold separately) |
|
POWER SUPPLY |
PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK) |
|
POWER ADAPTER OUTPUT 9V DC 1.3A |
9V DC 1.3A |
| Dimensions | Â |
|---|---|
|
LENGTH |
4.75" (122mm) |
|
WIDTH |
2.875" (76mm) |
|
HEIGHT |
1.75" (47mm) |
|
WEIGHT |
0.8 lbs. |
| Audio Output | Â |
|---|---|
|
OUTPUT |
1/4" Unbalanced (Tip-Sleeve) |
|
MAX OUTPUT LEVEL |
+10 dBu |
|
OUTPUT IMPEDANCE |
1 k? (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off) |
| Audio Input | Â |
|---|---|
